Tumble Belt Shot Blasting Machine – automatic loading and unloading

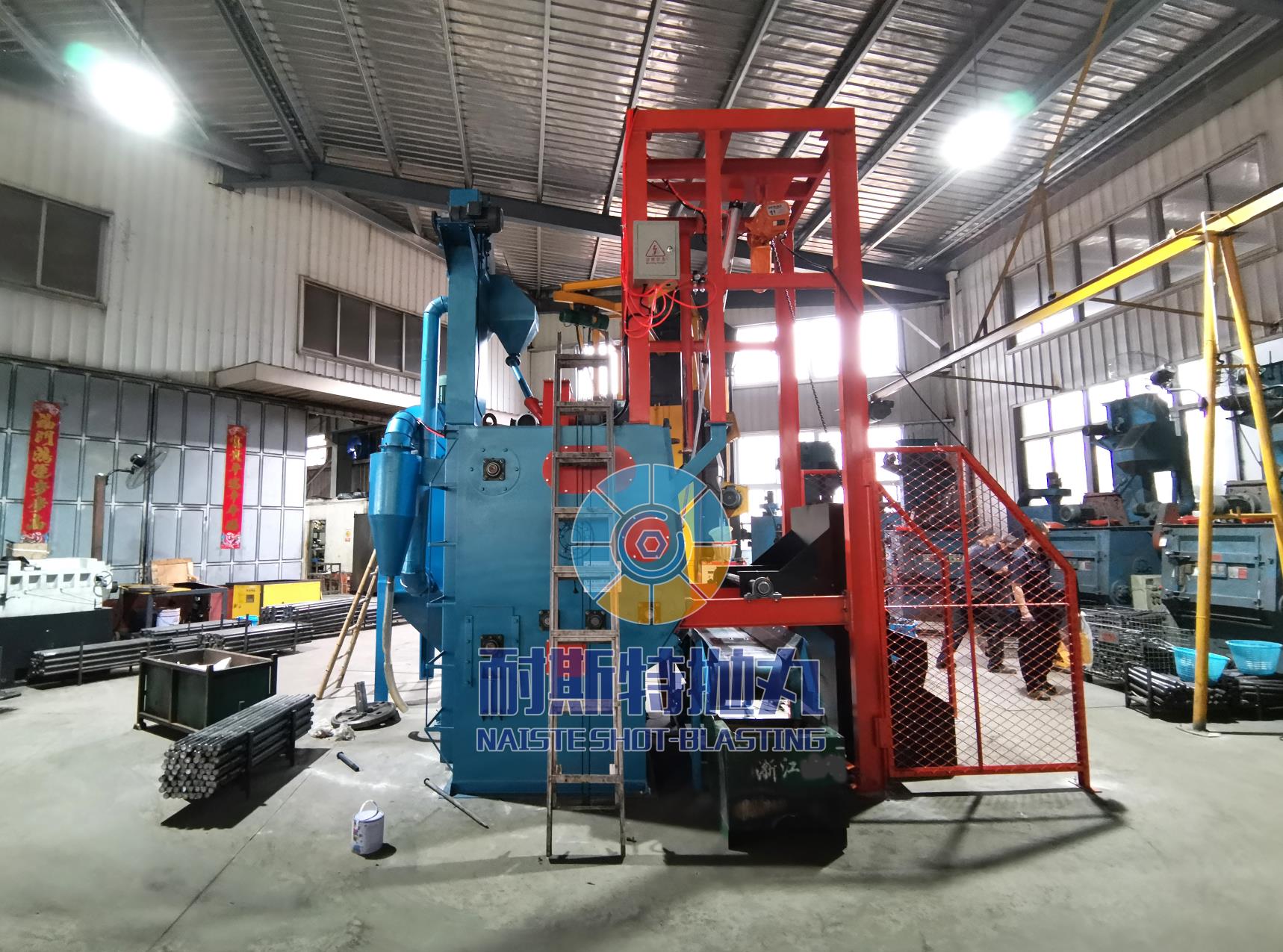

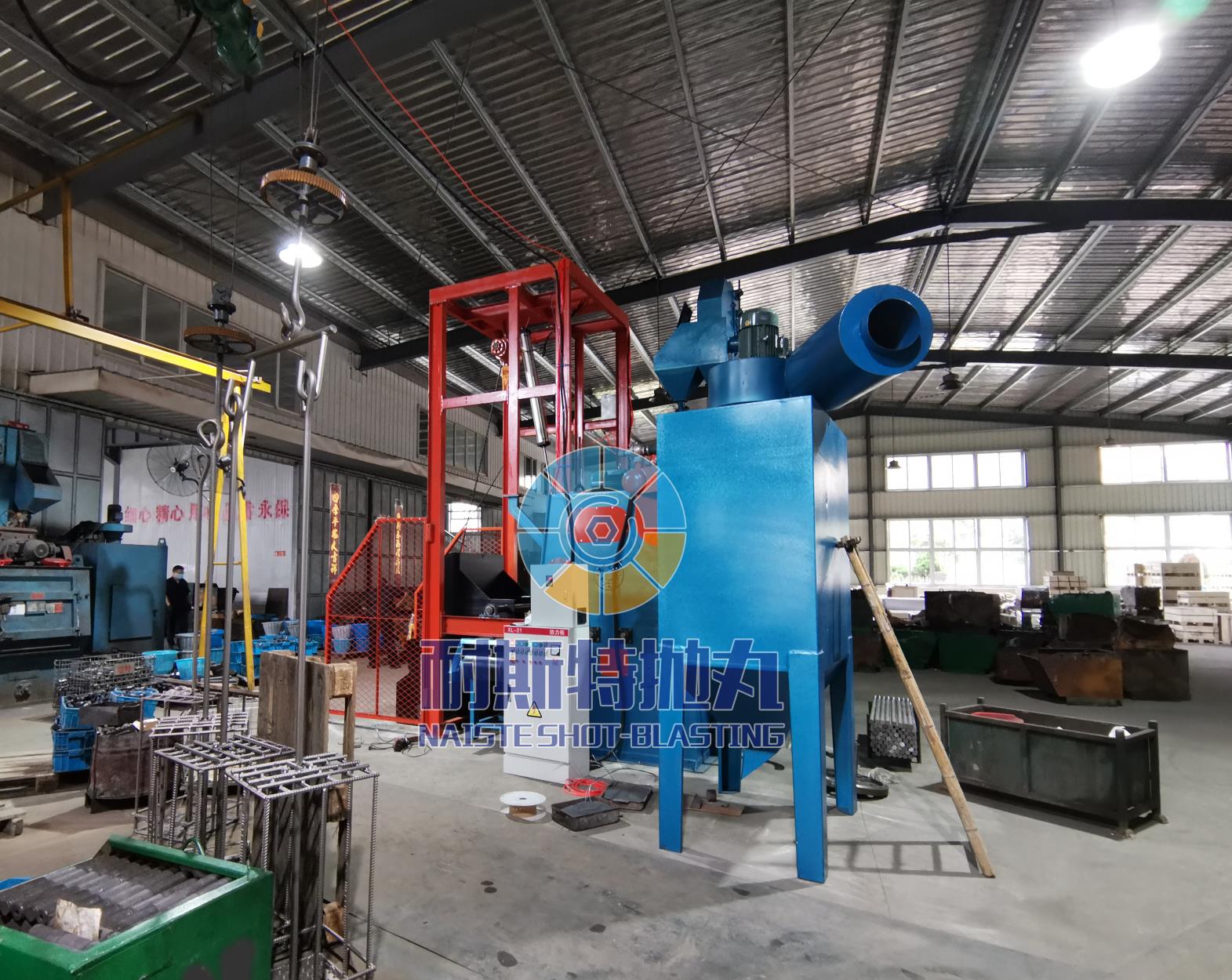

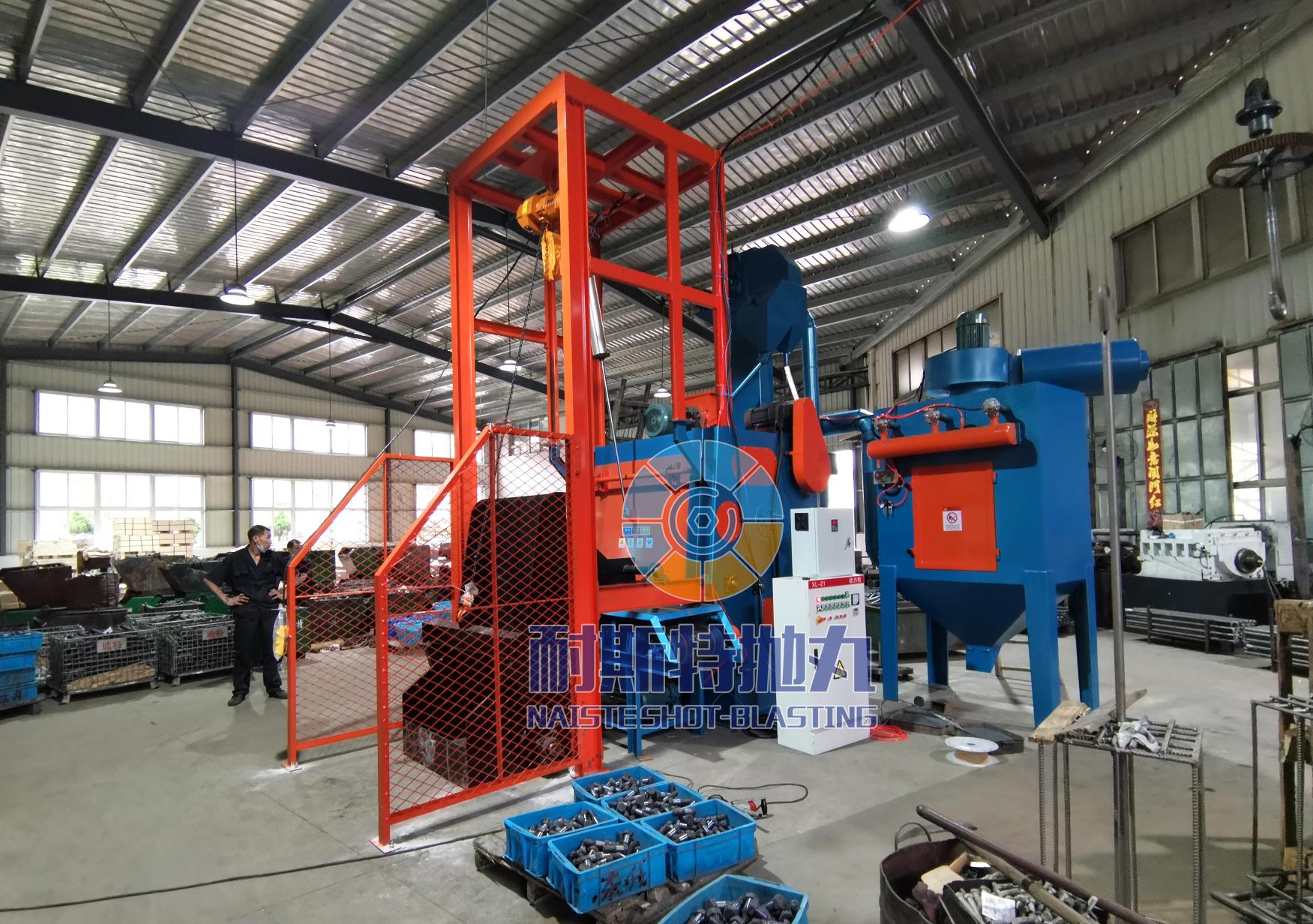

Tumble Belt Shot Blasting Machine - automatic loading and unloading - product picture

Tumble Belt Shot Blasting Machine - automatic loading and unloading - detailed introduction

Q32 series Tumble Belt Shot Blasting Machine includes: Q324 small caterpillar shot blasting machine, Q326 caterpillar shot blasting machine, Q3210 caterpillar shot blasting machine, Q3212 large caterpillar shot blasting machine Q3220 non-standard caterpillar shot blasting machine a variety of specifications, according to the size of the shot blasting workpiece to shape.

• Tumble Belt Shot Blasting Machine - automatic unloading: suitable for all lines of hardware tools, small castings, forgings, stamping parts, gear, spring and other parts of the surface cleaning, rust removal, removal of oxide and shot blasting strengthening process, especially suitable for the fear of collision parts cleaning and strengthening. It is suitable for large production scale, can be used single-machine, can also be multi-machine production. And continuous conveyor and other supporting production cleaning line. This machine is a comprehensive domestic and foreign technology, design and development of new products, is a good cleaning effect, compact structure, low noise, good integrity of cleaning equipment, has the following characteristics:
• 1. This machine adopts SQ034 cantilever centrifugal shot blasting device, which has the characteristics of long service life, simple structure and low failure rate.
• 2. The shot slag separator adopts the current very advanced flow curtain full screen shot slag separator, which greatly improves the separation amount, separation efficiency and shot blasting quality, and reduces the wear of the shot blasting device. The separation diameter of the separator is 0.8 ~ 3.0. High separation efficiency. It has good separation effect and high productivity, and greatly improves blade life.
• 3. The dust collector adopts a very good domestic cyclone + pulse filter cartridge dust removal technology, dust emission concentration meets the discharge standard, improve the operating environment.
• 4. Wear resistant rubber track, track internal structure is composed of cotton canvas, track is provided with 11 same between areas, a total of 3586 sand leakage holes of 6mm diameter. The working face is equipped with 11 "people" table patterns to improve the number of rolling and cleaning effect. A guide bar is set in the middle of the non-working face to ensure the normal operation of the track in the specified position and direction. Reduce the collision and damage of the workpiece, reduce the noise of the machine;
• 5. After the workpiece is cleaned, the track can be automatically discharged by reversing, which reduces the labor intensity of workers.

Tumble Belt Shot Blasting Machine - automatic loading and unloading is a new type of special shot blasting cleaning equipment designed according to user requirements, used for cleaning and strengthening castings and forgings, small springs, bearings and other workpiece. The equipment is more shot blasting, better sealing, cleaning effect, production efficiency and dust removal effect has been greatly improved, the chamber body using rolled Mn13 chamber body protection plate, single shift production service life can reach 10 years. Through shot blasting cleaning and strengthening, not only can remove the rust on the surface of the workpiece, oxide scale, sand after casting, but also can reduce the internal stress of the workpiece, improve the fatigue strength of the workpiece. The machine can be used in single machine or wiring, with high cleaning efficiency.

1. Shot blasting device

Native chose Q034 type belt drive form of shot blasting machine, motor and shot blasting machine installation into a whole, compact structure, small occupied area, coaxial sex strong, stable working performance, projectile through the pill after tube into the high speed rotating maru ", and from the points pills round window, through the concentrated in directional window orientation, by high speed rotating blade to undertake and accelerate, Finally, it is thrown from the end of the blade to strike and clear the surface of the workpiece.

The shot blasting device is characterized by a single impeller small disc, blade, impeller. Therefore, the moment of inertia is small, easy to start and stop, reduce the maintenance workload and production cost.

Rapid blade assembly and disassembly: because the blade of this shot blasting device is inserted from the center of the impeller, the impeller is fixed by centrifugal force in the process of rotation, so no clamping tool is needed. When removing the blade, it can be easily removed from the center of the impeller by tapping the outer end of the blade. It takes only 5-10 minutes to remove 8 blades and can check the grinding condition of the pellet wheel and the directional sleeve at the same time.

This shot blasting device blade, shot wheel, directional sleeve adopts Swiss GF.DISA production process, high chromium wear-resistant material precision casting, so that the weight error of the blade is controlled within 5 grams, greatly reduce the noise of shot blasting operation, prolong the life of easy XU pieces, beautiful appearance, delicate structure, convenient manufacturing and maintenance, low noise.

2, screw conveyor

It is composed of spiral blade, spindle, ball bearing with seat at both ends and driving pulley. It adopts the form of small diameter section distance and high speed, in order to be coaxial with the hoist at the same speed for lifting.

3, bucket elevator

It is composed of upper and lower belt pulley, belt equipped with hopper, upper drive shaft, upper tensioning adjustment device and cover shell. Its function is to bend the bottom pellet sand mixture to the top of the hoist by centrifugal force and swing down the feed pipe of the upper separator, for which a certain belt line speed is required

Tumble Belt Shot Blasting Machine - How it works

Tumble Belt Shot Blasting Machine- Technical specifications
